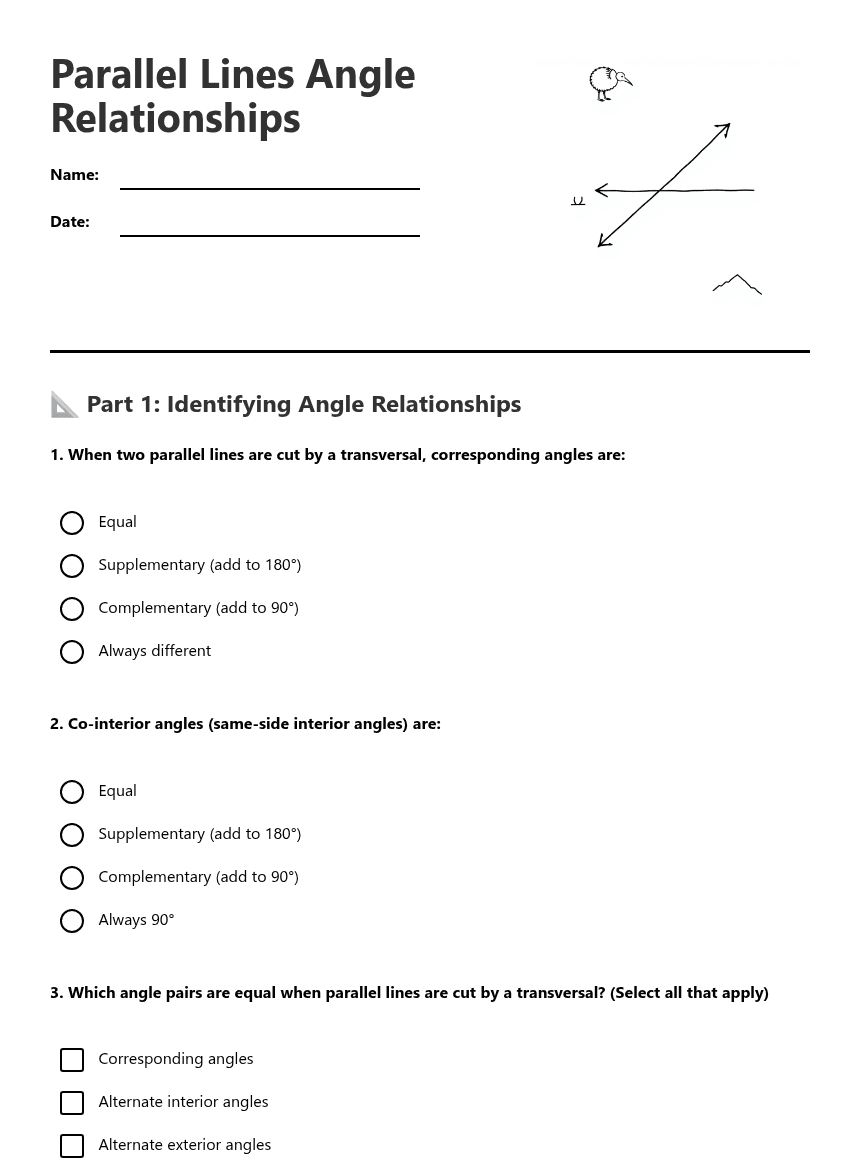

Parallel Lines Angle Relationships

Name:

Date:

📐 Part 1: Identifying Angle Relationships

1. When two parallel lines are cut by a transversal, corresponding angles are:

Equal

Supplementary (add to 180°)

Complementary (add to 90°)

Always different

2. Co-interior angles (same-side interior angles) are:

Equal

Supplementary (add to 180°)

Complementary (add to 90°)

Always 90°

3. Which angle pairs are equal when parallel lines are cut by a transversal? (Select all that apply)

Corresponding angles

Alternate interior angles

Alternate exterior angles

Co-interior angles

4. If one corresponding angle measures 65°, what is the measure of its corresponding angle?

Answer: _______°

🔢 Part 2: Calculating Missing Angles

5. Two parallel lines are cut by a transversal. If one alternate interior angle is 110°, find the other alternate interior angle.

Answer: _______°

6. In a diagram with parallel lines and a transversal, two co-interior angles are represented as 3x° and (2x + 30)°. Find the value of x.

x = _______

7. If corresponding angles are (4y - 20)° and (2y + 40)°, find the value of y and the measure of each angle.

y = _______ and each angle = _______°

✏️ Part 3: Problem Solving and Reasoning

8. A road crosses two parallel railway tracks. The angle between the road and the first track is 75°. What is the angle between the road and the second track? Explain your reasoning using angle relationship rules.

9. Draw a diagram showing two parallel lines cut by a transversal. Label one angle as 130° and mark all other angles with their measures. Use angle relationship rules to justify your answers.

10. Explain in your own words why alternate interior angles are equal when parallel lines are cut by a transversal. Give a real-world example where this relationship might be useful.
