Researching Architectural Forms Through Drawing
Year 10 Art and Design Lesson 3: 3D Architectural Explorations Understanding structure through observation
Learning Objectives - What We Are Learning To Do
Select and research a specific architectural place or space Observe and draw key shapes, structures, and forms Annotate drawings to explain architectural elements Use detailed observational drawing skills for form and proportion
What Makes Architecture Interesting to Study?
Think about buildings or spaces that catch your attention Consider function, form, materials, and cultural significance How do architects solve problems through design?
Research and Selection Activity
Choose your architectural subject Local landmarks, famous buildings, or school spaces Research: style, function, distinctive features Create bullet-point research summary in sketchbook

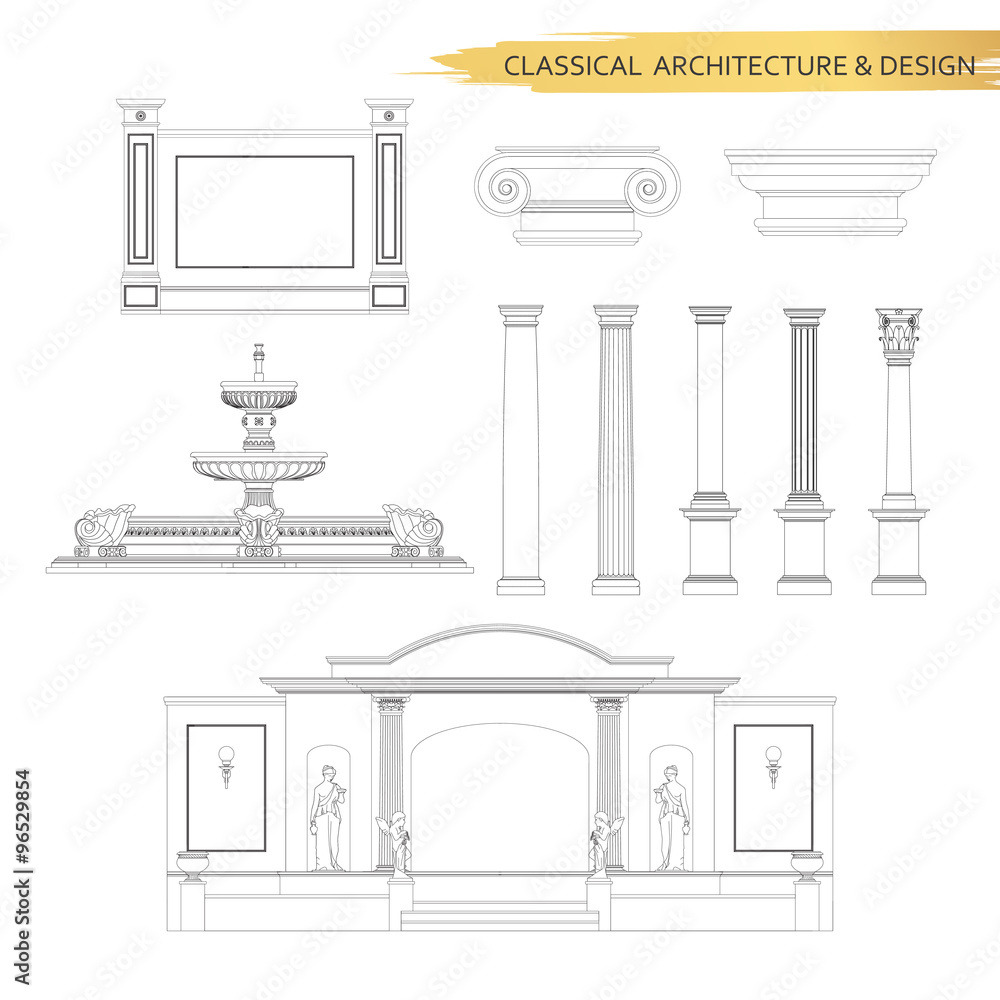

Key Elements to Observe and Draw
{"left":"Basic geometric shapes and forms\nStructural elements and support systems\nProportions and scale relationships\nSurface textures and materials","right":"Light and shadow patterns\nFunctional design features\nDecorative or cultural elements\nEnvironmental integration"}
Drawing Techniques for Architecture
Use construction lines to establish proportions Start with basic shapes before adding details Apply line weight variation for depth and emphasis Include tone and shading to show form Add accurate annotations explaining features
Observational Drawing and Annotation
Create detailed drawings of key architectural elements Focus on accuracy of shape and proportion Add comprehensive annotations explaining: • Function and purpose • Materials and construction • Design influences and style • Your observations about the architecture
Reflection and Next Steps
Share your drawings with a partner for peer feedback Discuss how architectural understanding supports 3D design Consider environmental and cultural design influences Prepare for next lesson: developing 3D models from drawings
