Hess's Law and Waves

A free science worksheet ready for your classroom. Open in Kuraplan to grab the print-ready PDF, customize it for your students, or generate a fresh version in seconds.

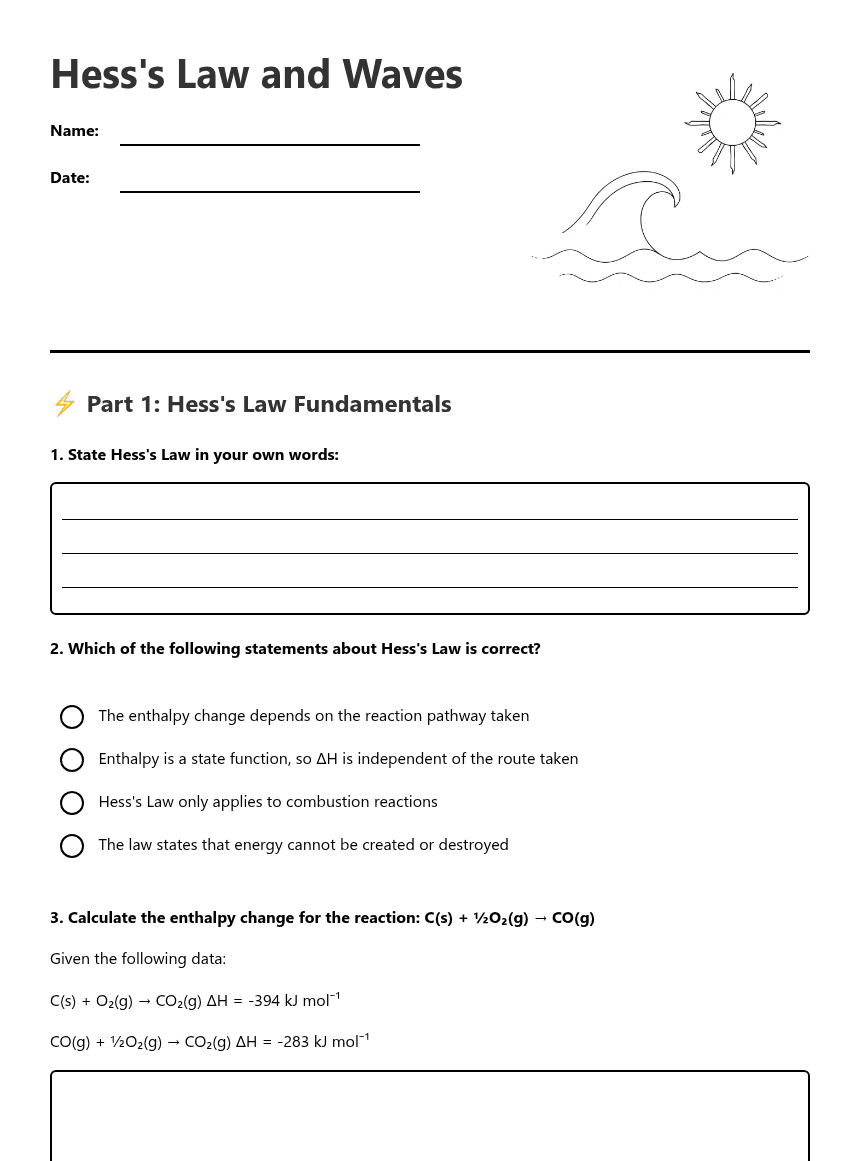

Hess's Law and Waves worksheet preview
Hess's Law and Waves

Hess's Law and Waves

Energy cycle and wave pattern diagram

⚡ Part 1: Hess's Law Fundamentals

1. State Hess's Law in your own words:
2. Which of the following statements about Hess's Law is correct?

The enthalpy change depends on the reaction pathway taken

Enthalpy is a state function, so ΔH is independent of the route taken

Hess's Law only applies to combustion reactions

The law states that energy cannot be created or destroyed

3. Calculate the enthalpy change for the reaction: C(s) + ½O₂(g) → CO(g)

Given the following data:

C(s) + O₂(g) → CO₂(g) ΔH = -394 kJ mol⁻¹

CO(g) + ½O₂(g) → CO₂(g) ΔH = -283 kJ mol⁻¹

Answer: ΔH = _________ kJ mol⁻¹

🌊 Part 2: Stationary Waves

4. Complete the following statements about stationary waves:

a) Nodes are points where the amplitude is always _____________

b) Antinodes are points where the amplitude is at its _____________

c) Stationary waves are formed by the _____________ of two waves travelling in _____________ directions

5. Which of the following are characteristics of stationary waves? (Select all that apply)

Energy is transferred along the wave

Nodes remain in fixed positions

All points oscillate in phase

The distance between adjacent nodes is λ/2

6. Draw a stationary wave pattern showing 3 complete wavelengths, clearly labelling nodes (N) and antinodes (A):

🔗 Part 3: Connecting Concepts - Path Independence

7. Explain how the concept of "path independence" applies to both Hess's Law and stationary waves:
8. Match the thermodynamic concepts with their wave analogies:
1. Energy state function
2. Enthalpy change (ΔH)
3. Reaction pathway
4. Energy conservation
A. Wave amplitude at nodes/antinodes
B. Superposition principle
C. Energy distribution pattern
D. Wave interference method

🎯 Part 4: Integrated Problem Solving

9. A string of length 1.2 m is fixed at both ends and vibrates in its third harmonic. If the wave speed is 240 m/s, calculate:

a) The wavelength: λ = ___________ m

b) The frequency: f = ___________ Hz

c) The number of nodes: ___________ nodes

10. Using the enthalpy cycle below, calculate the enthalpy of formation of methane (CH₄):

Given:

ΔH°c[CH₄(g)] = -890 kJ mol⁻¹

ΔH°c[C(s)] = -394 kJ mol⁻¹

ΔH°c[H₂(g)] = -286 kJ mol⁻¹

ΔH°f[CH₄(g)] = ___________ kJ mol⁻¹

💡 Part 5: Creative Integration

11. Design your own analogy diagram that links an energy cycle (Hess's Law) with a stationary wave pattern. Show how energy stability points relate to nodes:
12. Reflection: How does understanding energy conservation help in both thermodynamics and wave behaviour?
13. Challenge: Can you think of another physical or chemical system where energy path independence might be observed?
