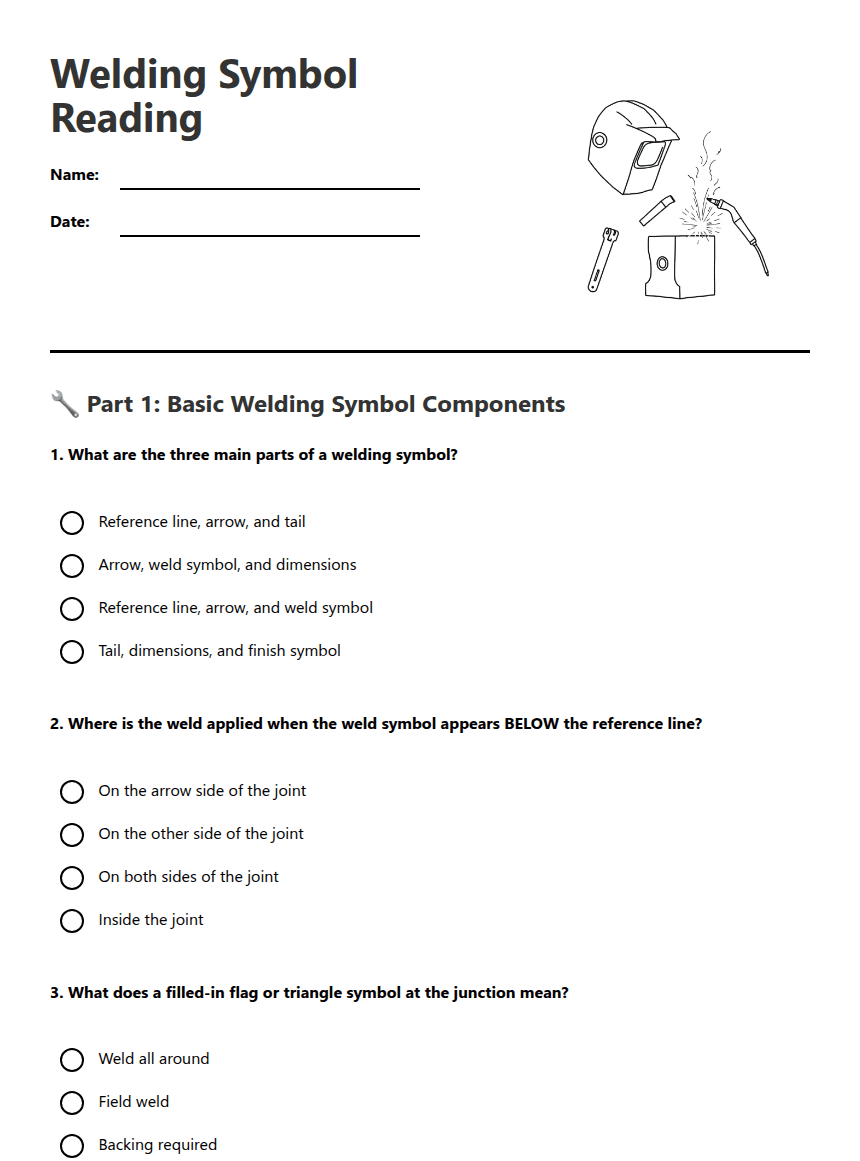

Welding Symbol Reading
A free, printable general worksheet ready for your classroom. Download instantly, print, and hand out to your students — no account needed.
Welding Symbol Reading Quiz
🔧 Part 1: Basic Welding Symbol Components
1. What are the three main parts of a welding symbol?
Reference line, arrow, and tailArrow, weld symbol, and dimensionsReference line, arrow, and weld symbolTail, dimensions, and finish symbol
2. Where is the weld applied when the weld symbol appears BELOW the reference line?
On the arrow side of the jointOn the other side of the jointOn both sides of the jointInside the joint
3. What does a filled-in flag or triangle symbol at the junction mean?
Weld all aroundField weldBacking requiredGrind smooth
4. What does a circle around the junction of the reference line and arrow indicate?
Field weldWeld all aroundBacking stripRoot opening
⚡ Part 2: Weld Types and Symbols
5. Match each weld symbol with its name by writing the correct letter:
A. Fillet weld B. Groove weld C. Plug/Slot weld D. Spot weld
_____ Triangle symbol
_____ Square or V-shaped symbol
_____ Circle symbol
_____ Rectangle symbol
6. What information can be found in the tail of a welding symbol?
7. If you see dimensions like "1/4" to the left of a fillet weld symbol, what does this number represent?
📐 Part 3: Reading Welding Symbols
8. A welding symbol shows a fillet weld symbol below the reference line with "3/16" to the left of it. Describe this weld:
Weld type: _________________ Size: _________________ Location: _________________
9. List three safety considerations when reading and following welding symbols in the shop:
10. Why is it important for welders to accurately read and interpret welding symbols?
