Instrument Barometer — free printable diagram

About this illustration

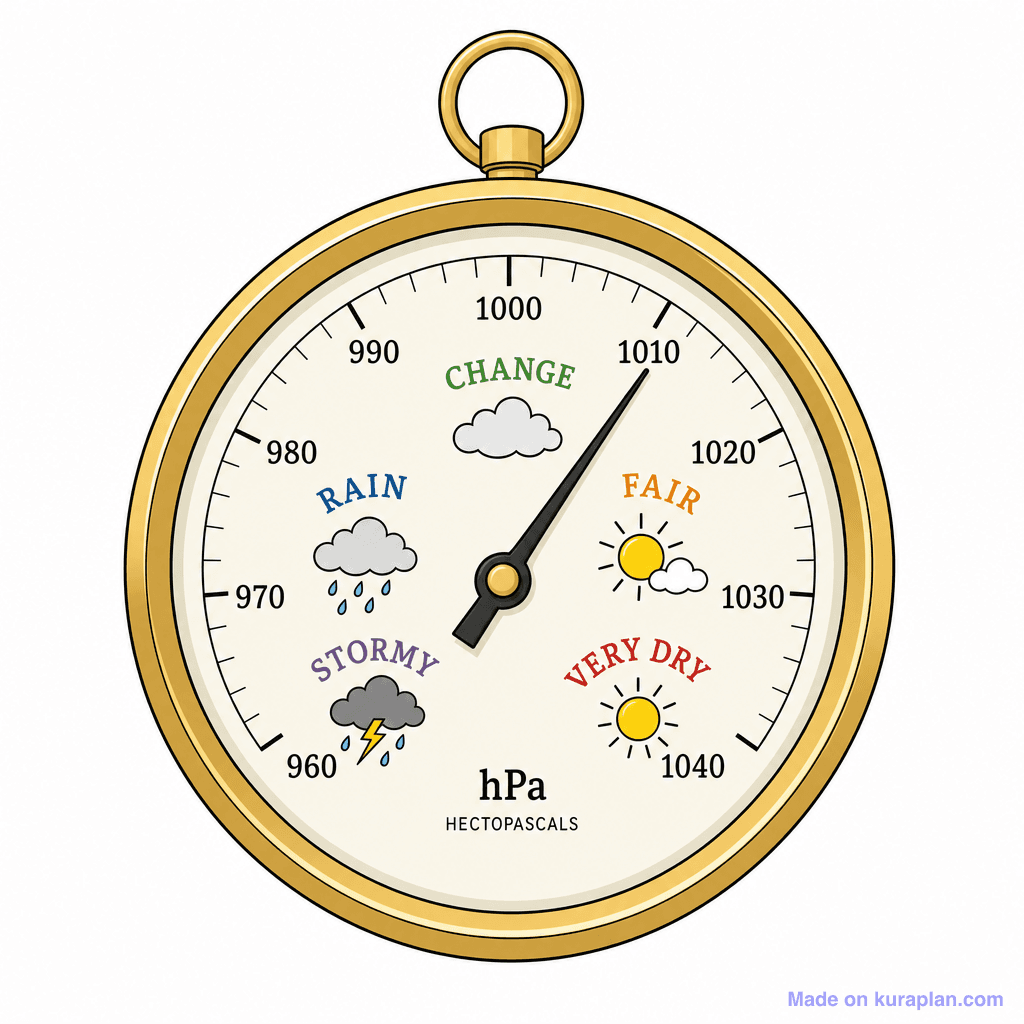

This flat illustration shows a classic gold-cased barometer with a white dial, displaying atmospheric pressure in hectopascals (hPa) from 960 to 1040. The dial is marked with different weather conditions: 'STORMY' (lightning cloud), 'RAIN' (rain cloud), 'CHANGE' (plain cloud), 'FAIR' (sun with cloud), and 'VERY DRY' (sun). It teaches the scientific concept of barometric pressure and its correlation to weather forecasting, demonstrating how a barometer can predict changes in weather. This visual is well-suited for science worksheets, interactive slides, or as an educational reference tool in a classroom setting.

How to use

1. 1Right-click the image and choose “Save image as”, or use the download button.
2. 2Use it in your classroom worksheets, slides or printables — free under CC BY-NC 4.0.
3. 3Attribute as “Image by Kuraplan” or link back to kuraplan.com. Not for commercial resale.
