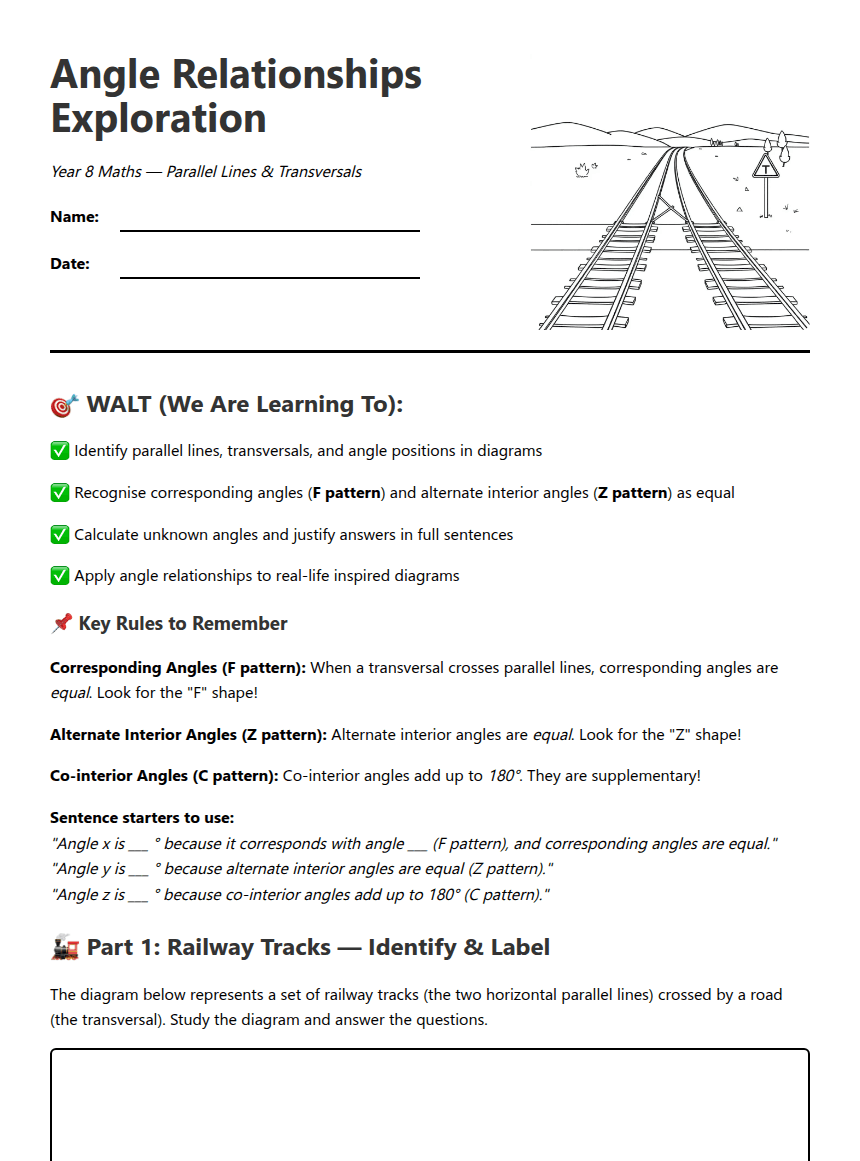

Angle Relationships Exploration

Identify parallel lines, a transversal and angle positions. For parallel lines, corresponding angles (the F pattern) and alternate interior angles (the Z pattern) are equal. Co-interior angles on the same side of a transversal add to 180°. Use these relationships to calculate unknown angles and explain your reasoning.

Railway tracks: identify and label

Use the following angle positions for Questions 1–4. Draw two horizontal parallel lines crossed by a diagonal transversal sloping from lower left to upper right. At the upper intersection, label a upper-left, b upper-right, c lower-right and d lower-left. At the lower intersection, label e upper-left, f upper-right, g lower-right and h lower-left. For Question 1, make a separate sketch using these positions.

Draw two horizontal parallel lines crossed by a diagonal transversal sloping from lower left to upper right. At the upper intersection, label a upper-left, b upper-right, c lower-right and d lower-left. At the lower intersection, label e upper-left, f upper-right, g lower-right and h lower-left.

1.From your sketch, name one pair of corresponding angles. Explain how their positions make them corresponding, and state whether they are equal when the lines are parallel.

2.From your sketch, name one pair of alternate interior angles. Explain why they make a Z pattern and state the relationship between their sizes.

3.At the upper intersection of your labelled sketch, angle a is 65°. Calculate angle e and justify your answer using an angle rule.

4.At the upper intersection of your labelled sketch, angle a is 65°. Calculate angle c, which is alternate interior with angle e. Show how you used the value of angle e.

Road markings: calculate and explain

Assume the road markings in each question are parallel and the diagonal divider is a transversal.

5.At the upper intersection, an interior angle on the right side of the transversal measures 112°. Find the alternate interior angle at the lower intersection and the corresponding angle at the lower intersection. Explain the rule for each answer.

6.Select every statement that is correct for two parallel lines crossed by a transversal.

Corresponding angles are equal.
Alternate interior angles add to 180°.
Co-interior angles on the same side of the transversal add to 180°.
Every angle formed must be 90°.
The F pattern can help identify corresponding angles.
The Z pattern can help identify co-interior angles.

7.A road designer says that knowing one angle at the first intersection is enough to calculate all eight angles. Do you agree? Explain how angle relationships support your answer.

8.Two parallel lines are crossed by a transversal. At the upper intersection, angle p is the lower-left angle and measures 73°. Let q be the vertically opposite angle at that same intersection, r the corresponding angle at the lower intersection, and s the co-interior angle at the lower intersection on the same side of the transversal as p. Calculate q, r and s, giving a reason for each.
