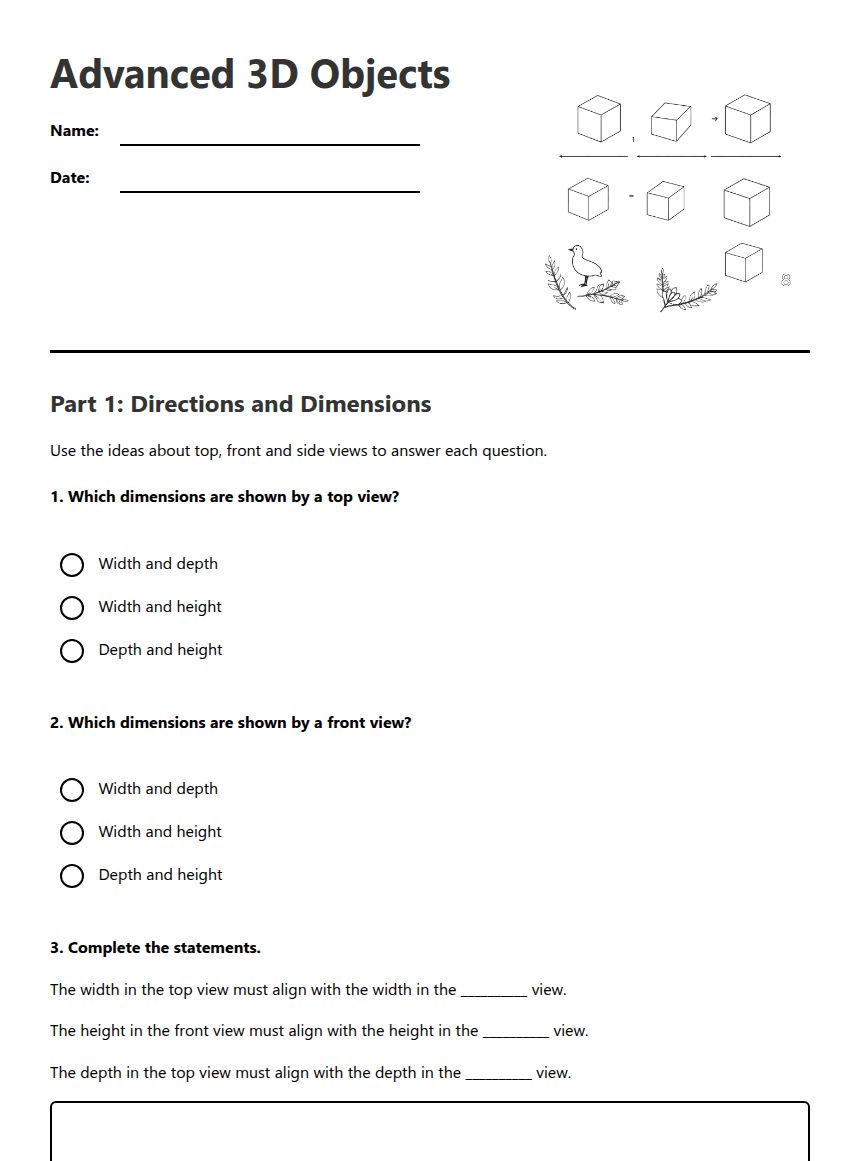

Advanced 3D Objects

Name:

Date:

Part 1: Directions and Dimensions

Use the ideas about top, front and side views to answer each question.

1. Which dimensions are shown by a top view?

Width and depth

Width and height

Depth and height

2. Which dimensions are shown by a front view?

Width and depth

Width and height

Depth and height

3. Complete the statements.

The width in the top view must align with the width in the __________ view.

The height in the front view must align with the height in the __________ view.

The depth in the top view must align with the depth in the __________ view.

Part 2: Reconstruct, Compare and Explain

4. A top view shows a shape that is wide from left to right and deep from front to back. A front view shows a shape that is wide from left to right and tall. A side view shows a shape that is deep from front to back and tall. Are these views consistent? Explain how you know.

5. Sketch one possible 3D object that could have these three views: a rectangular top outline, a rectangular front outline and a rectangular side outline. Label the top, front and side directions. Draw only the flat outlines and important internal edges.

6. Explain why one set of top, front and side views may allow more than one possible 3D object. Refer to what a view does not show.

7. A top view is wider from left to right than a front view is from left to right. Can these be views of the same object? Identify the dimension that must be checked and explain your decision.

8. Design two different 3D objects that have the same rectangular front view. Make their top or side views different. Sketch both objects and explain why their front views are still the same.

9. A classmate draws every visible line in a 3D sketch, including lines that do not show an important edge. What advice would you give them?

Answer Key and Marking Guidance

1. Width and depth.

2. Width and height.

3. Front; side; side.

4. Consistent. Width agrees between top and front, height agrees between front and side, and depth agrees between top and side.

5. Accept any plausible object whose three flat outlines match. Award credit for correct directions and for drawing only outlines and important internal edges.

6. Accept explanations stating that the views do not show every part or surface of the object, so different objects can produce the same three views.

7. Not consistent if the two widths describe the same corresponding dimension. Award credit for identifying width and explaining the mismatch.

8. Accept two genuinely different sketches with identical front outlines and different top or side views. The explanation must state that the front view shows width and height, but not the full depth arrangement.

9. The sketch should show only flat outlines and important internal edges, rather than unnecessary lines.
