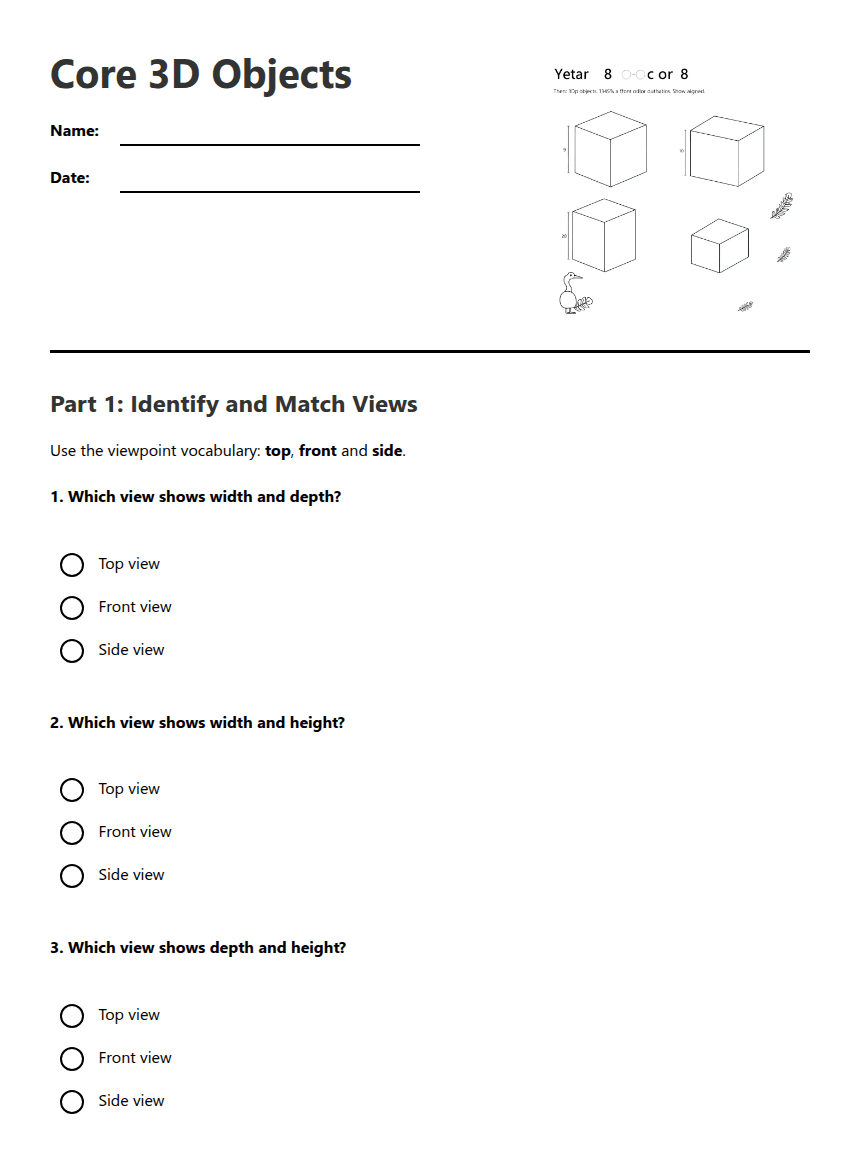

Core 3D Objects
Part 1: Identify and Match Views
Use the viewpoint vocabulary: top, front and side.
Part 2: Complete and Explain
The top view shows __________ and __________.
The front view shows __________ and __________.
The side view shows __________ and __________.
Part 3: Draw the Views
Answer Key
1. Top view.
2. Front view.
3. Side view.
4. Width: top and front; height: front and side; depth: top and side.
5. Top: width and depth; front: width and height; side: depth and height.
6. Top view.
7. Yes. More than one object may sometimes fit the same set of views.
8–9. Check that the outlines are flat, the views are labelled, dimensions align between the correct views, and important internal edges are included.
