Area and Perimeter of Composite Shapes (detailed) — free printable diagram

About this illustration

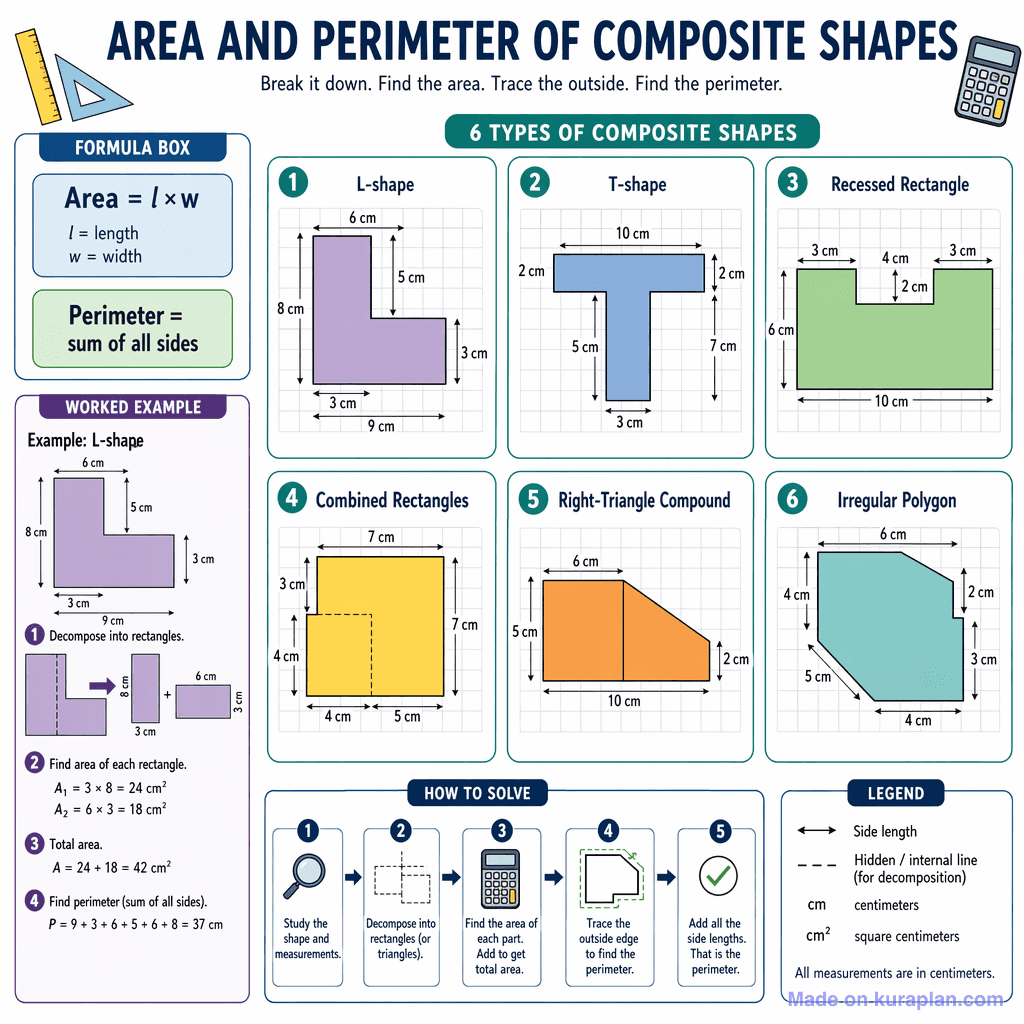

A detailed, labelled reference chart titled 'Area and Perimeter of Composite Shapes' for classroom use. It includes a formula box (Area = l × w; Perimeter = sum of all sides), a worked example decomposing an L-shape into two rectangles with full area and perimeter calculations, six labelled composite shape examples (L-shape, T-shape, Recessed Rectangle, Combined Rectangles, Right-Triangle Compound, Irregular Polygon) each with dimension labels in centimetres, a 5-step 'How to Solve' process, and a legend explaining symbols used.

How to use

1. 1Right-click the image and choose “Save image as”, or use the download button.
2. 2Use it in your classroom worksheets, slides or printables — free under CC BY-NC 4.0.
3. 3Attribute as “Image by Kuraplan” or link back to kuraplan.com. Not for commercial resale.
