Geometric Transformations on a Grid (simple) — free printable diagram

About this illustration

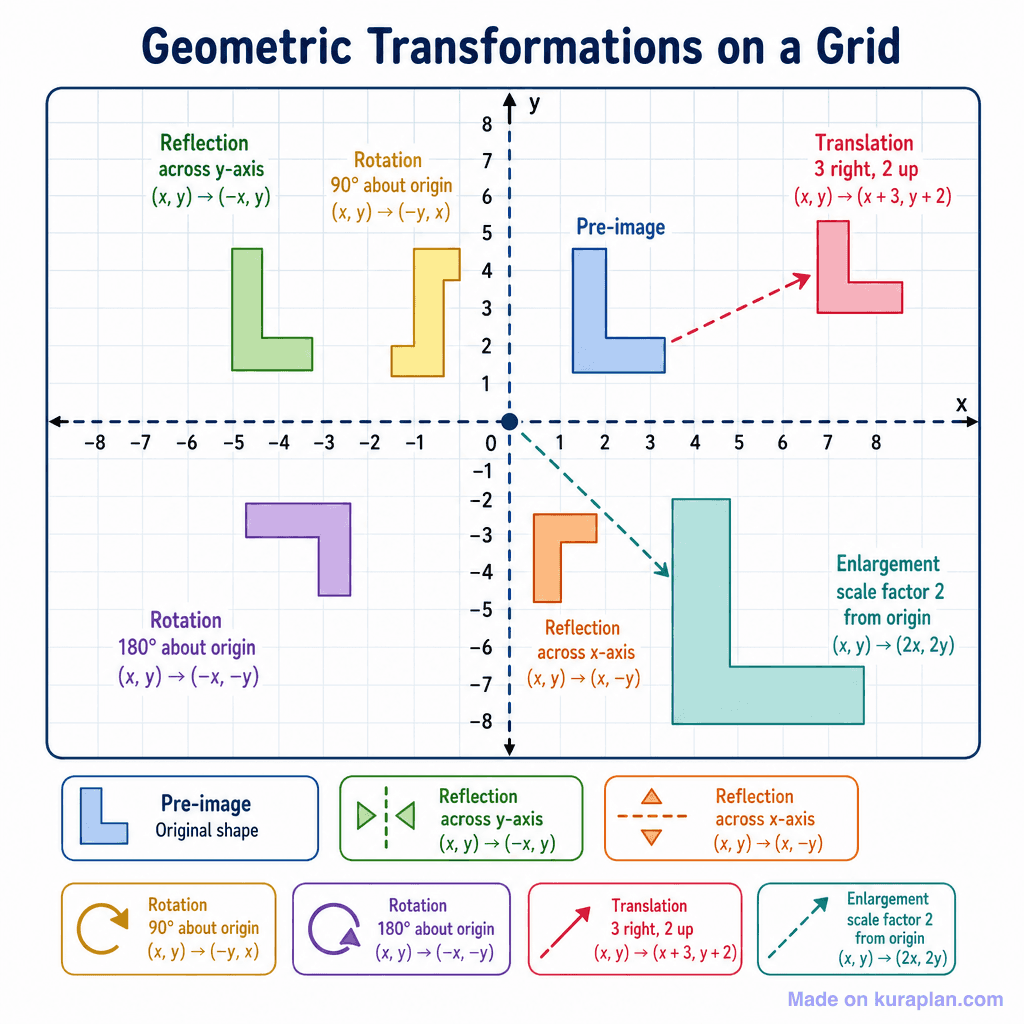

A coordinate grid diagram illustrating five geometric transformations of an L-shaped pre-image: reflection across the y-axis, reflection across the x-axis, rotation 90° about the origin, rotation 180° about the origin, translation 3 right 2 up, and enlargement scale factor 2 from the origin. Each transformed shape is colour-coded and labelled with its transformation rule. A legend at the bottom summarises all transformations with their algebraic mappings.
