📚 Part 1: Read and Understand

Learning intention: We are learning how shape and forces affect motion, and how aircraft are designed for different purposes.

Science connection: This worksheet links to NZ Te Mātaiaho Science physical science ideas about drag, or air resistance, opposing motion, and about how forces affect motion (NZ-TMA-SCIENCE-Y0-10-physical-science-224-DOC184).

Instructions: Read the passage carefully. Use evidence from the text when answering the questions.

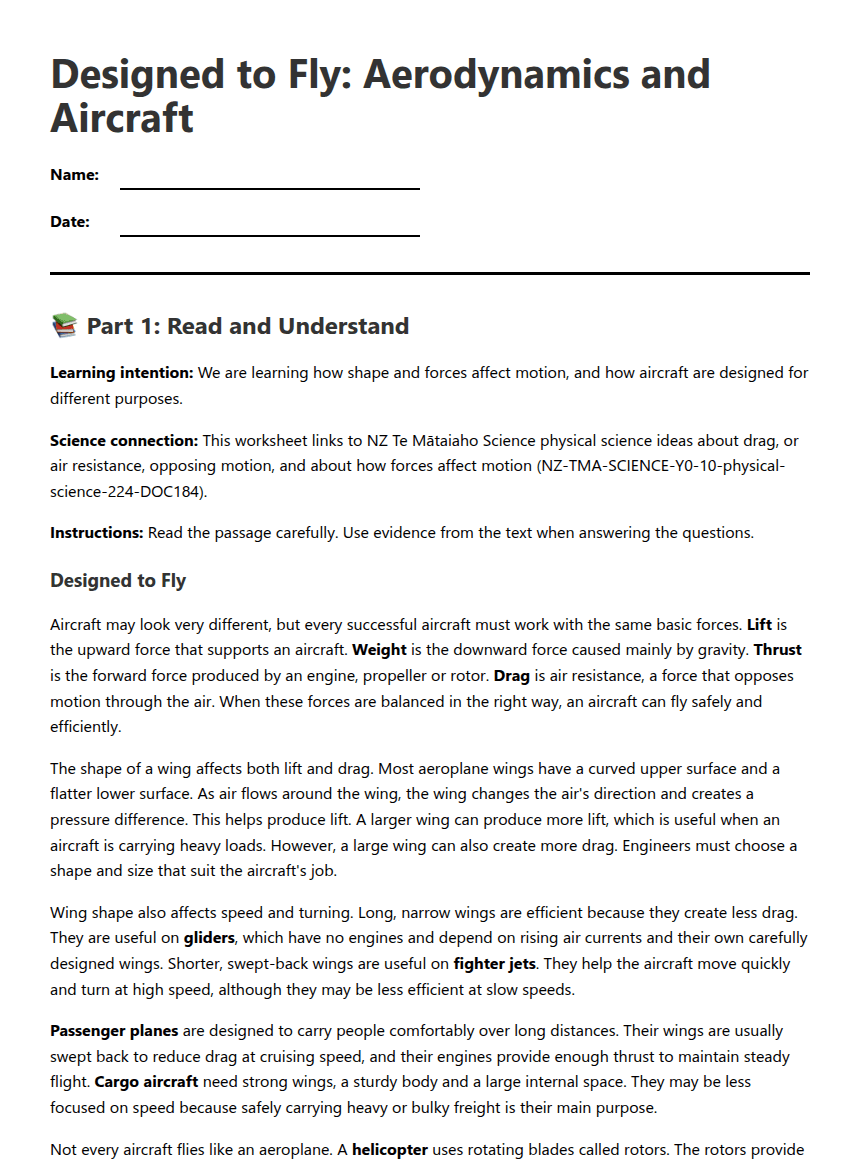

Designed to Fly

Aircraft may look very different, but every successful aircraft must work with the same basic forces. Lift is the upward force that supports an aircraft. Weight is the downward force caused mainly by gravity. Thrust is the forward force produced by an engine, propeller or rotor. Drag is air resistance, a force that opposes motion through the air. When these forces are balanced in the right way, an aircraft can fly safely and efficiently.

The shape of a wing affects both lift and drag. Most aeroplane wings have a curved upper surface and a flatter lower surface. As air flows around the wing, the wing changes the air's direction and creates a pressure difference. This helps produce lift. A larger wing can produce more lift, which is useful when an aircraft is carrying heavy loads. However, a large wing can also create more drag. Engineers must choose a shape and size that suit the aircraft's job.

Wing shape also affects speed and turning. Long, narrow wings are efficient because they create less drag. They are useful on gliders, which have no engines and depend on rising air currents and their own carefully designed wings. Shorter, swept-back wings are useful on fighter jets. They help the aircraft move quickly and turn at high speed, although they may be less efficient at slow speeds.

Passenger planes are designed to carry people comfortably over long distances. Their wings are usually swept back to reduce drag at cruising speed, and their engines provide enough thrust to maintain steady flight. Cargo aircraft need strong wings, a sturdy body and a large internal space. They may be less focused on speed because safely carrying heavy or bulky freight is their main purpose.

Not every aircraft flies like an aeroplane. A helicopter uses rotating blades called rotors. The rotors provide lift and thrust, allowing the helicopter to hover, rise, move forwards and land in small spaces. A helicopter is useful for rescue work because it can reach places without a runway. Stunt aircraft are built for quick changes in direction. They are often light, powerful and highly responsive, with control surfaces that allow pilots to roll, loop and climb.

Speed changes the forces acting on an aircraft. If an aircraft speeds up, its wings usually produce more lift, but drag also increases. More thrust may be needed to overcome this extra drag. If the aircraft slows down too much, it may not produce enough lift to stay airborne. Pilots and computers adjust the aircraft's speed, angle and controls so that lift, weight, thrust and drag remain suitable for the situation.

Aircraft also need stability. The tail helps keep the aircraft pointing in the correct direction and prevents unwanted movement. Control surfaces are movable parts that change the airflow and help the pilot steer. Ailerons help an aircraft roll, the elevator helps it pitch up or down, and the rudder helps it turn left or right. The centre of gravity is the point where an aircraft's weight can be considered to act. If the centre of gravity is in the wrong place, the aircraft may become difficult to control.

Before a new aircraft is built, engineers use drawings, computer models and wind tunnels to test ideas. A wind tunnel sends air over a model so engineers can measure lift and drag. They may change the wing angle, curve, size or materials, then test again. Full-sized aircraft are also tested carefully. Engineers study the results, find problems and improve the design. This process helps create aircraft that are safer, stronger and better suited to their purpose.

✏️ Part 2: Vocabulary and Apply Your Learning

10. Compare Two Aircraft

Complete the organiser using information from the passage. Compare a glider with a helicopter. Include their source of lift or thrust, wing or rotor design, and a suitable purpose.

✅ Answer Key: Model Answers

1. Lift, weight, thrust and drag.

2. A large wing can produce more lift, helping to support a heavy aircraft or load.

3. Long, narrow wings create less drag and help a glider fly efficiently without an engine.

4. A passenger plane is designed to carry people comfortably over long distances, while a cargo aircraft is designed to carry heavy or bulky freight and has a strong body and large internal space.

5. A helicopter can hover and land in small spaces, so it can reach places that do not have a runway.

6. Its wings may not produce enough lift to keep it airborne.

7. Being light helps it change direction quickly, while power provides the thrust needed for climbs, loops and other manoeuvres.

8. Engineers test, identify problems and change the design to make it safer, stronger or more suitable for its purpose.

9. Lift is the upward force supporting an aircraft. Drag is air resistance opposing motion. The centre of gravity is the point where the aircraft's weight can be considered to act.

10. A glider uses its wings and rising air currents rather than an engine for flight; it has long, narrow wings and is suitable for efficient soaring. A helicopter uses rotating rotors for lift and thrust; it can hover and is suitable for rescue work or places without runways.

11. Answers may include that gliders have long, narrow wings for efficient soaring, fighter jets have swept-back wings for high-speed turns, passenger planes have wings designed for long-distance cruising, cargo aircraft have strong bodies for heavy loads, and helicopters have rotors for hovering.

12. A helicopter is the best recommendation. Its rotors provide lift and thrust, allowing it to hover and move forwards. It can land in small spaces without a runway, making it suitable for remote rescue work. A stable tail and control surfaces would help the pilot steer safely.
