Layers of the Earth's Atmosphere (detailed) — free printable diagram

About this illustration

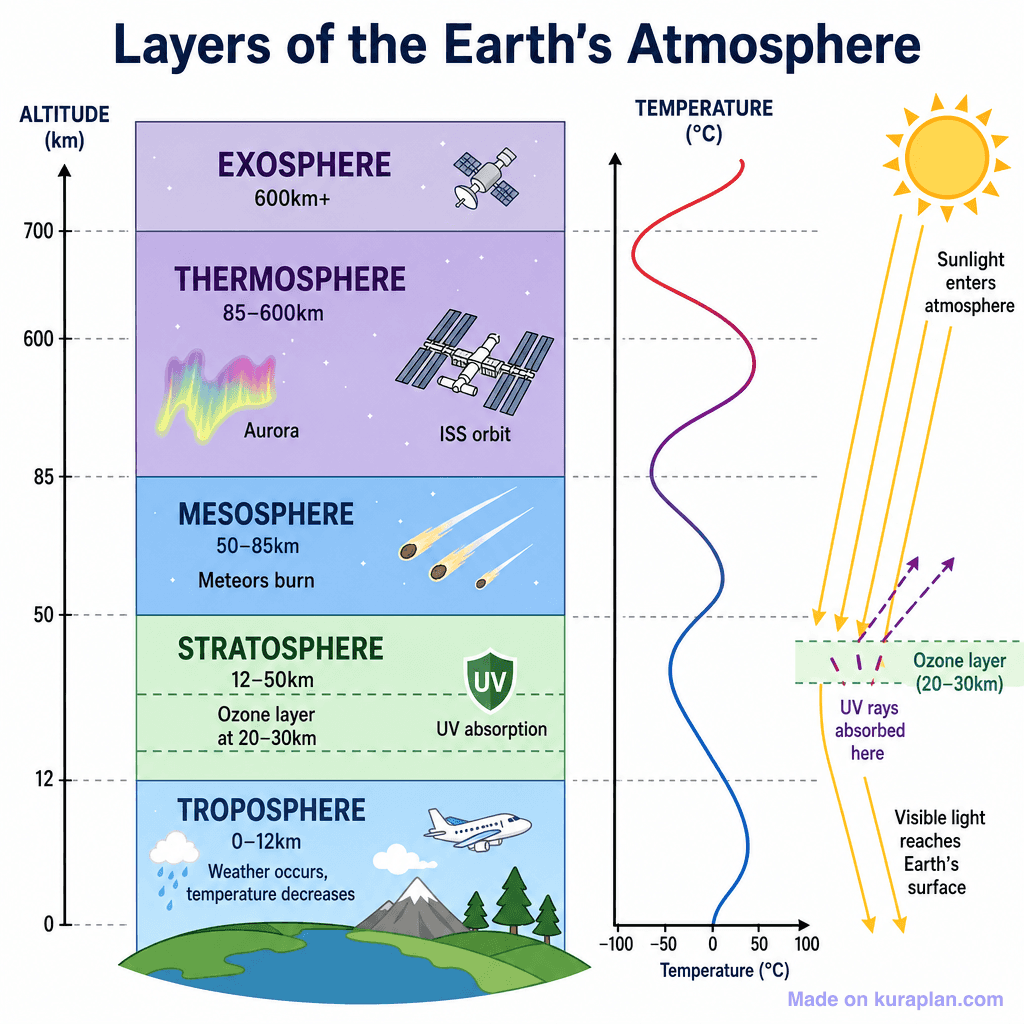

A detailed, fully labelled diagram of the five layers of Earth's atmosphere shown as stacked horizontal bands with altitude (km) on the left axis. Each layer names its altitude range and a key feature (e.g. meteors burn, ozone layer, weather). A temperature vs altitude profile curve is shown in the centre, and a sunlight/UV absorption panel is on the right with a sun graphic. Illustrations include aurora, ISS, meteors, a UV shield, a plane, mountains, and trees.

How to use

1. 1Right-click the image and choose “Save image as”, or use the download button.
2. 2Use it in your classroom worksheets, slides or printables — free under CC BY-NC 4.0.
3. 3Attribute as “Image by Kuraplan” or link back to kuraplan.com. Not for commercial resale.
