Coordinate Plane — Four Quadrants (detailed) — free printable diagram

About this illustration

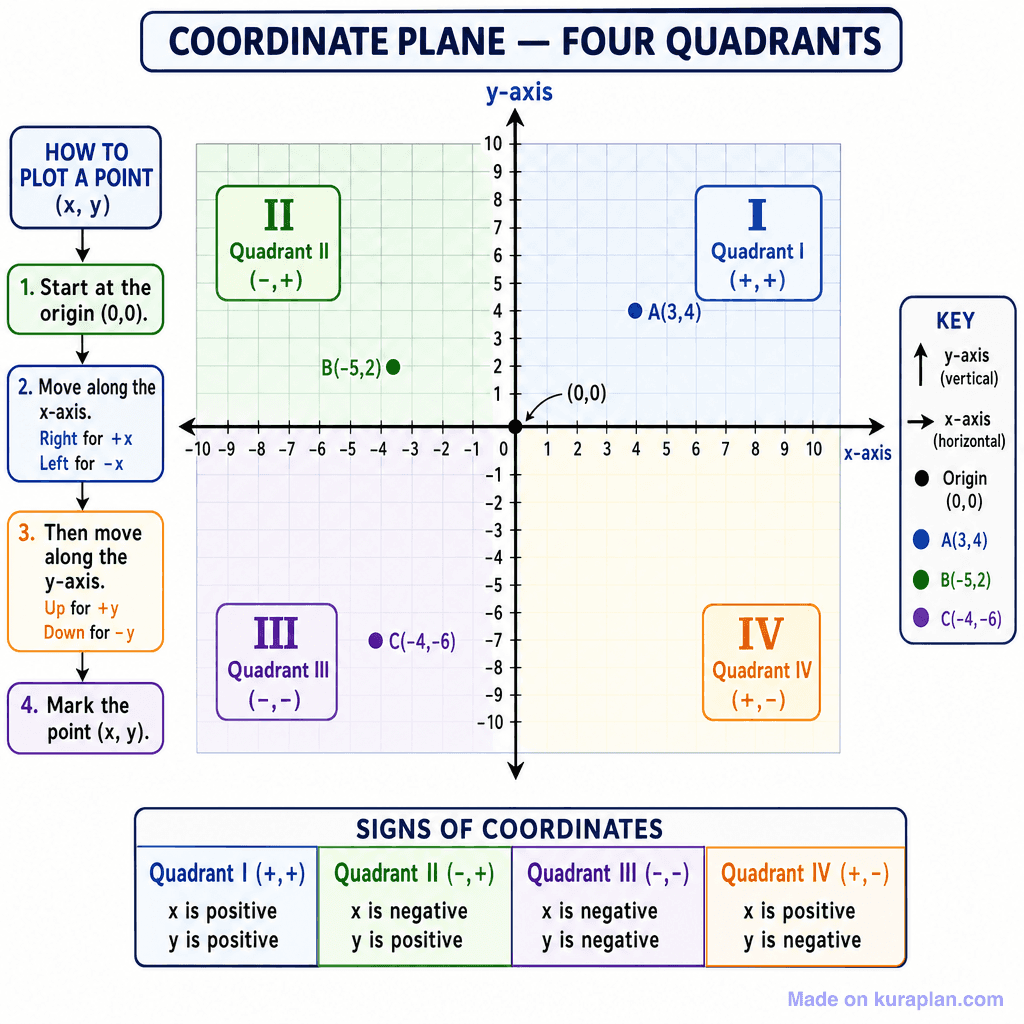

A detailed, fully-labelled coordinate plane diagram showing all four quadrants with sign conventions, three plotted example points (A, B, C), a step-by-step plotting guide on the left, a key on the right, and a summary signs-of-coordinates table at the bottom. Axes run from -10 to 10 on both x and y. Each quadrant is colour-coded and labelled with its Roman numeral, name, and sign pair. Three example points are plotted: A(3,4) in Quadrant I, B(-5,2) in Quadrant II, and C(-4,-6) in Quadrant III.
