Circuit Symbol and Component Cards

Free science printable for teachers · Cards

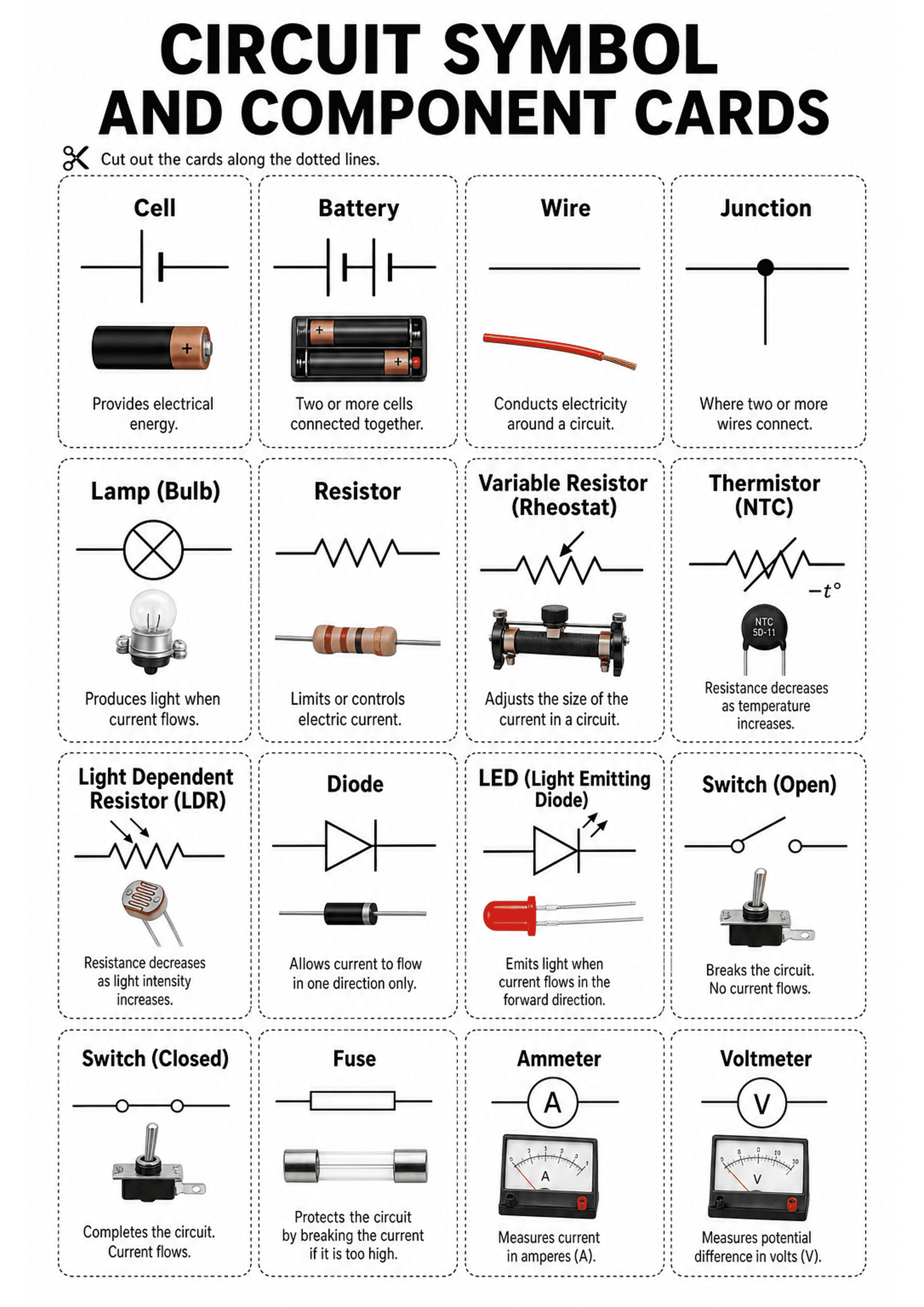

Circuit Symbol and Component Cards: A4 title header 'CIRCUIT SYMBOL AND COMPONENT CARDS' with a scissor icon and instruction to cut along dotted lines; a tiled grid of rectangular cards separated by dotted cut lines. Each card shows (from top to bottom) a black circuit symbol, a bold component name (e.g. Cell, Battery, Wire, Junction, Lamp (Bulb), Resistor, Variable Resistor (Rheostat), Thermistor (NTC), LDR, Diode, LED, Switch (Open/Closed), Fuse, Ammeter, Voltmeter), a photographic image of t...
Download free PDF

About this printable

This printable contains a grid of cards: each card displays a circuit symbol at the top, a photographic image of the physical component in the middle, a bold label (e.g. Resistor, LED, Ammeter) and a one-line description beneath. Teachers can use these as flashcards, matching cards for group work, or as labels for practical equipment to build vocabulary and symbol recognition before or during a circuits practical. The resource focuses on common components (cells/batteries, resistors and special resistors, diodes/LEDs, meters, switches, fuse etc.) rather than advanced circuit analysis.
