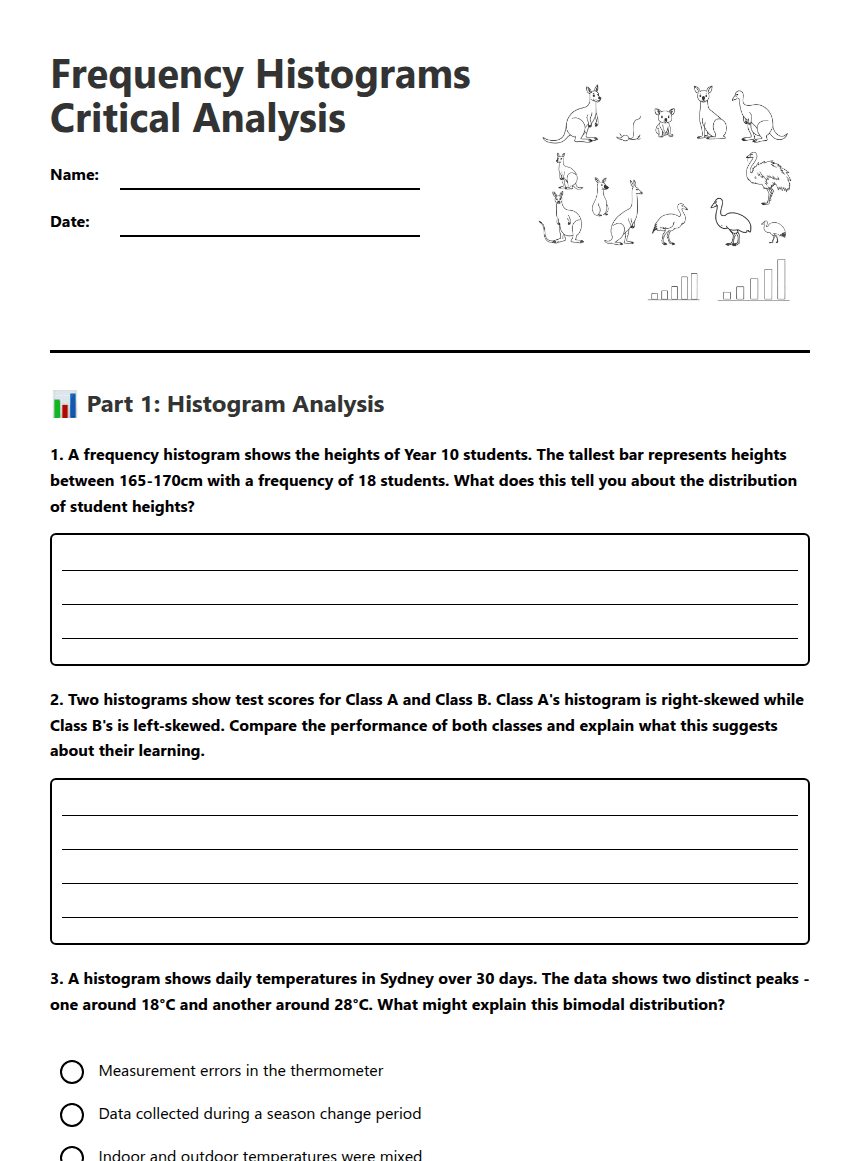

Frequency Histograms Critical Analysis

Name:

Date:

📊 Part 1: Histogram Analysis

1. A frequency histogram shows the heights of Year 10 students. The tallest bar represents heights between 165-170cm with a frequency of 18 students. What does this tell you about the distribution of student heights?

2. Two histograms show test scores for Class A and Class B. Class A's histogram is right-skewed while Class B's is left-skewed. Compare the performance of both classes and explain what this suggests about their learning.

3. A histogram shows daily temperatures in Sydney over 30 days. The data shows two distinct peaks - one around 18°C and another around 28°C. What might explain this bimodal distribution?

Measurement errors in the thermometer

Data collected during a season change period

Indoor and outdoor temperatures were mixed

The sample size was too small

4. When comparing a frequency histogram to its corresponding frequency polygon, which statement is most accurate?

The polygon always shows clearer trends than the histogram

The histogram is better for showing exact frequencies

Both representations contain identical information but emphasise different aspects

Polygons are only useful for continuous data

5. A frequency polygon shows the distribution of weekly pocket money for Year 9 students. The line peaks at $25 and has a long tail extending towards higher values. What does this suggest about pocket money distribution?

🔍 Part 2: Critical Interpretation

6. A school principal claims that "most students score above average" based on a right-skewed histogram of test results. Critically evaluate this statement and explain whether it's mathematically possible.

7. Two frequency polygons overlap on the same graph showing reaction times for teenage drivers and adult drivers. The teenage polygon peaks earlier but has a wider spread. Analyse what this reveals about driving safety implications.

8. A histogram shows the number of hours students spend on social media daily. The distribution is heavily right-skewed with most students in the 1-3 hour range, but some extending to 10+ hours. What are the limitations of using the mean to describe this data?

9. When would you choose to present data as a frequency polygon instead of a histogram? Select all appropriate reasons:

When comparing multiple data sets on one graph

When emphasising the shape and trends in the distribution

When exact frequencies are the most important feature

When showing how data changes over time

💭 Part 3: Application & Evaluation

10. Design a scenario where you would expect to see a uniform distribution in a frequency histogram. Explain why this distribution would occur and what it would indicate.

11. A frequency histogram shows that 60% of data falls within one standard deviation of the mean, but normal distribution theory suggests it should be about 68%. Evaluate possible explanations for this discrepancy.

12. If you were to create a frequency polygon from grouped data with unequal class intervals, what additional considerations would you need to make? Explain the potential issues and solutions.
